I built the stand, Frankie (for Frankenstand 'cause it turned out quite a bit taller than I thought it would, although in use it is actually an ideal height) out of 2"x2" 1/4" wall square steel tubing. The legs are offset at approximately a 10 degree angle which required some interesting setup to make a compound cut in my bandsaw. It also required some interesting methods to get them square. I ended up using a machinist's square to make a right angle triangle with my welding table to measure the angles. The feet are 1"x2" steel bar cut into 2" squares. I'm going to add a chip tray and a flood coolant system eventually...

Loading...

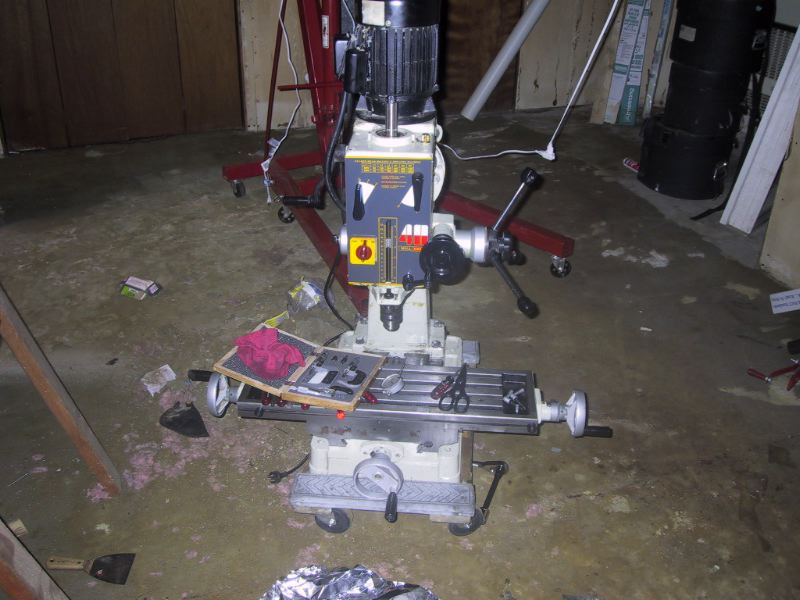

Here's the little mill. Kinda hard to use on a dolly!
Loading...

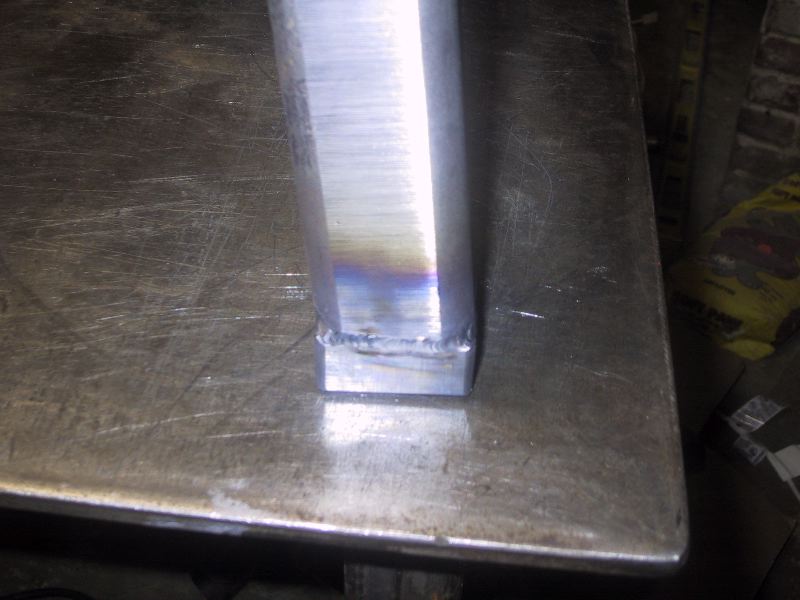

Leg ready to be tack-welded
Loading...

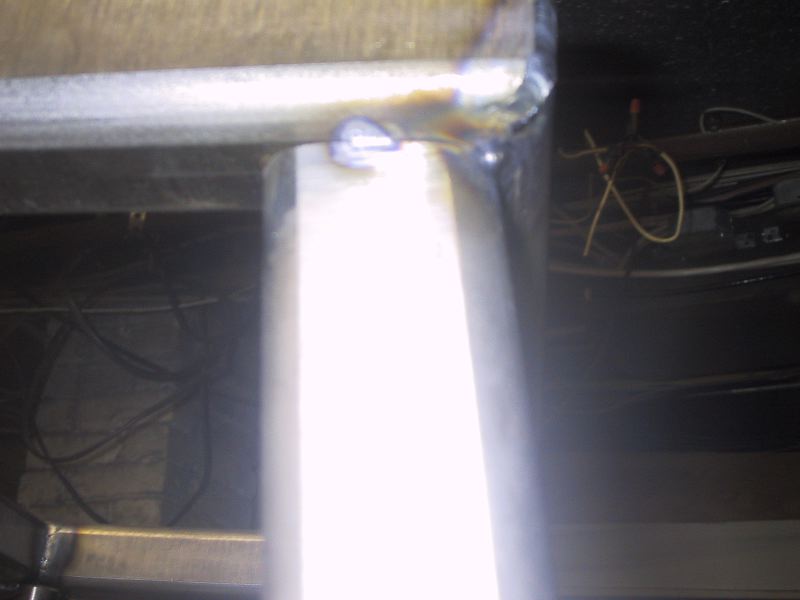

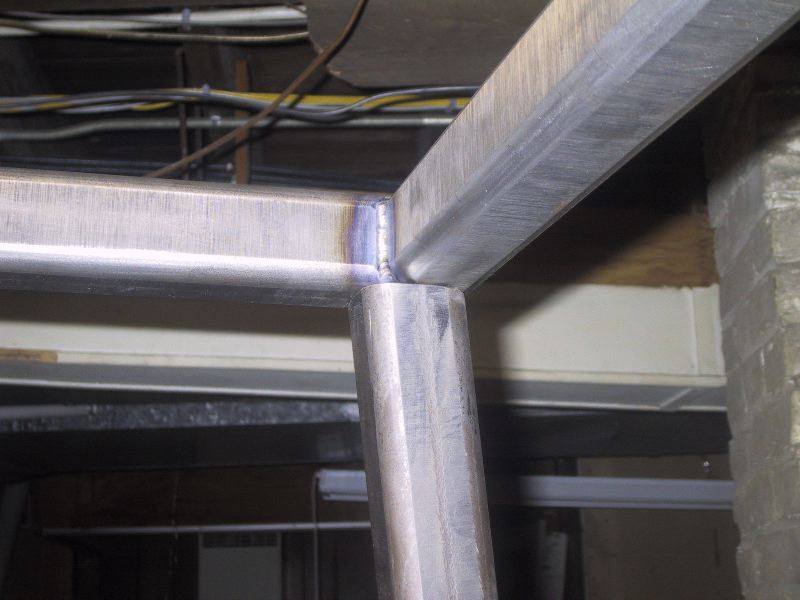

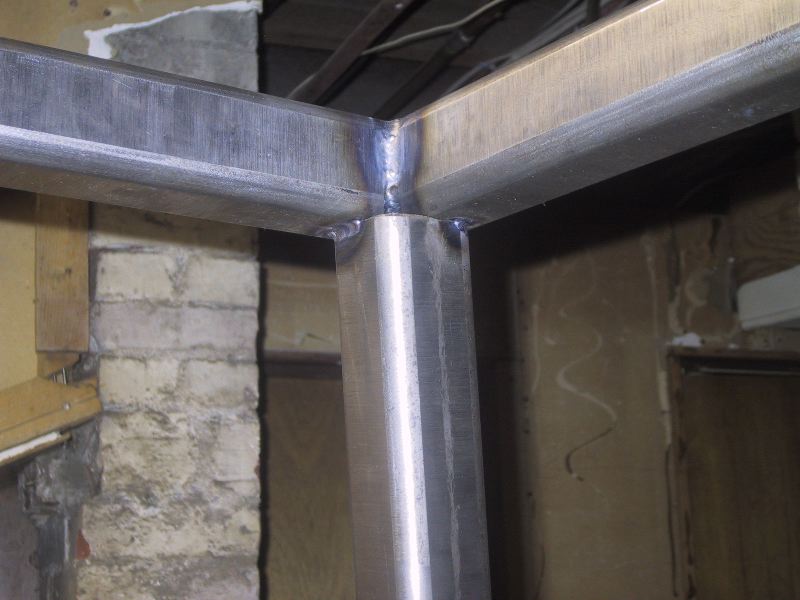

Tacked up and ready to go!
Loading...

Loading...

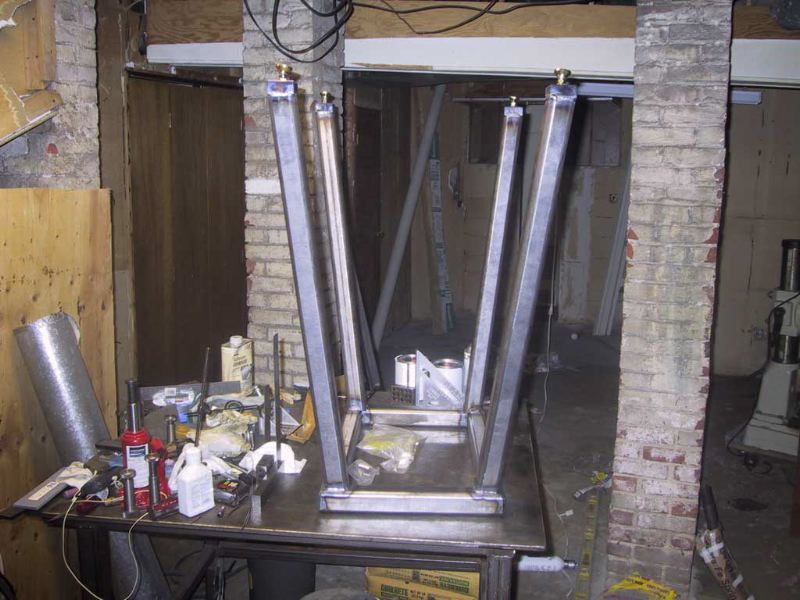

Top is complete, legs are tacked on and ready to be welded.
Loading...

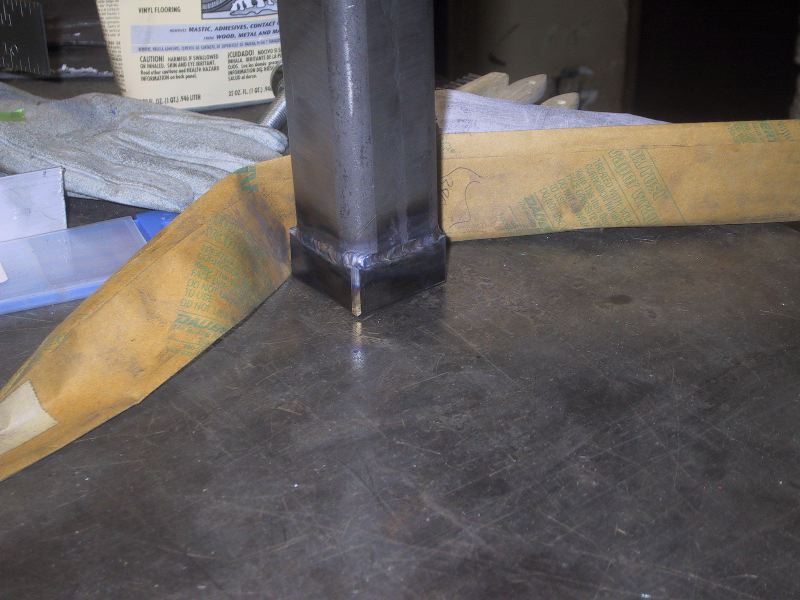

Foot with adjuster
Loading...

Loading...

Loading...

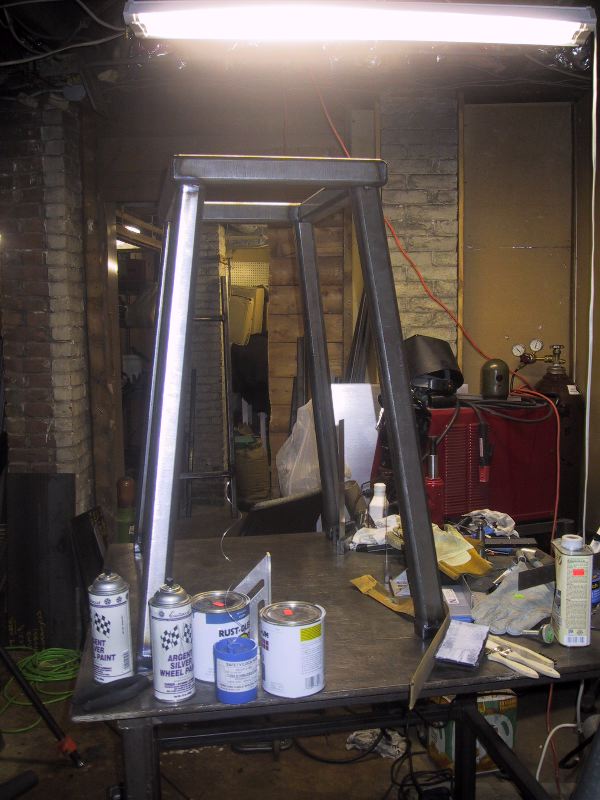

Frankie is basically complete - welded and ready for testing!

Loading...

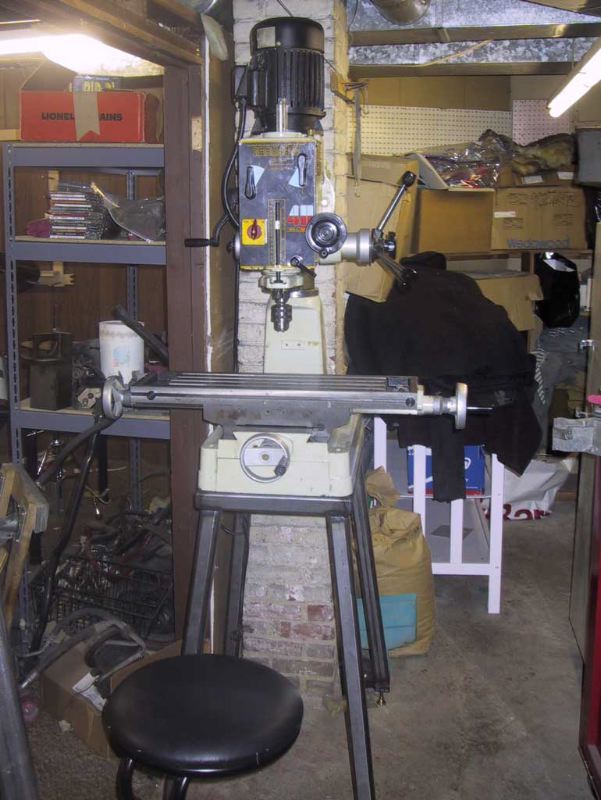

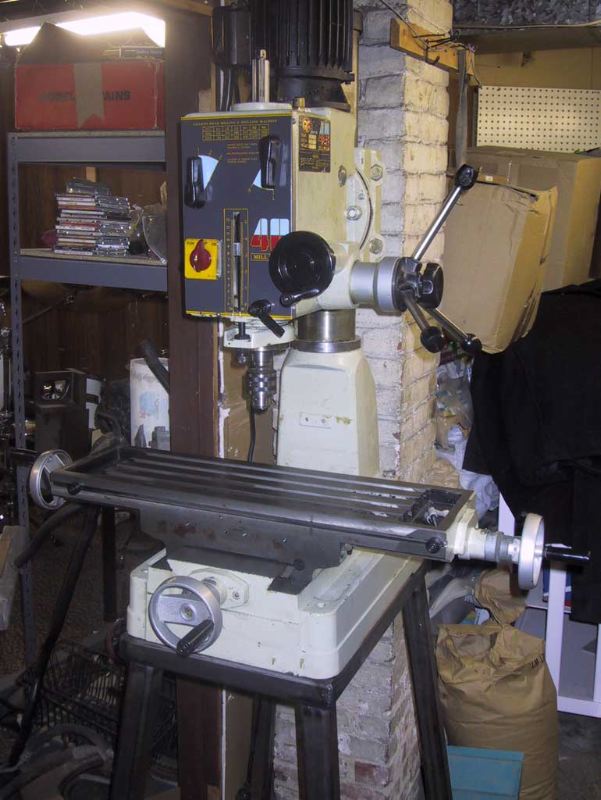

Completed, with Mill - I still need to add the chip tray and coolant, but that will come later. Loading...

Feels like forever, but I don't think it has been that long.. I finally got around to adding the chip tray and started on the coolant.

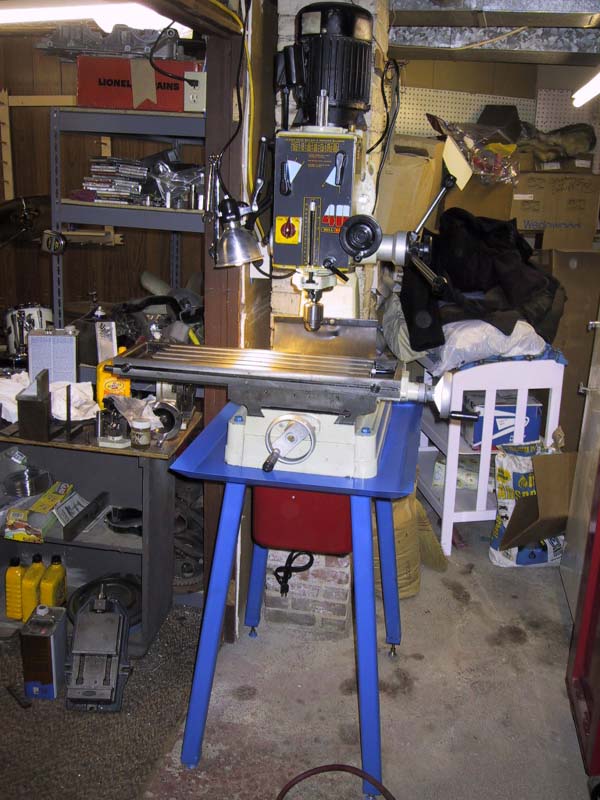

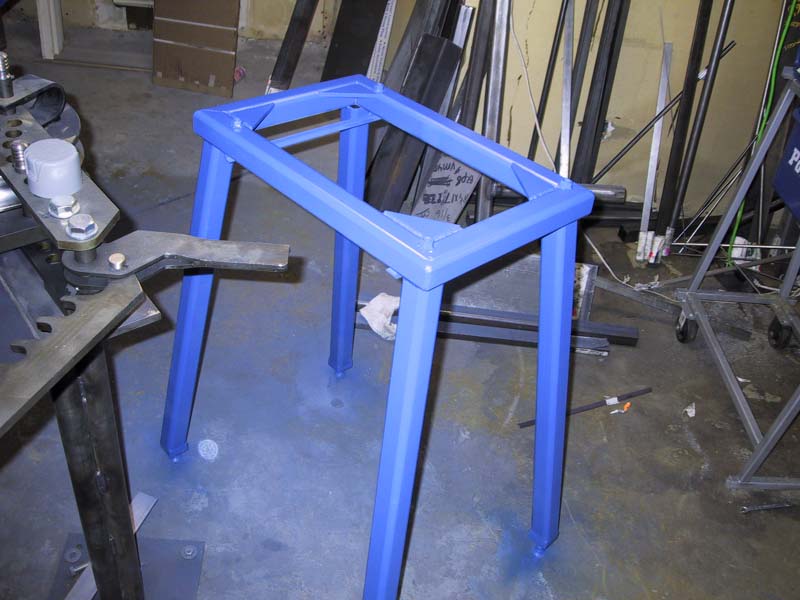

I finally got around to painting Frankie.. I'm a pretty lousy painter but I think it came out pretty well. I also welded on some nuts so I can bolt the mill down.

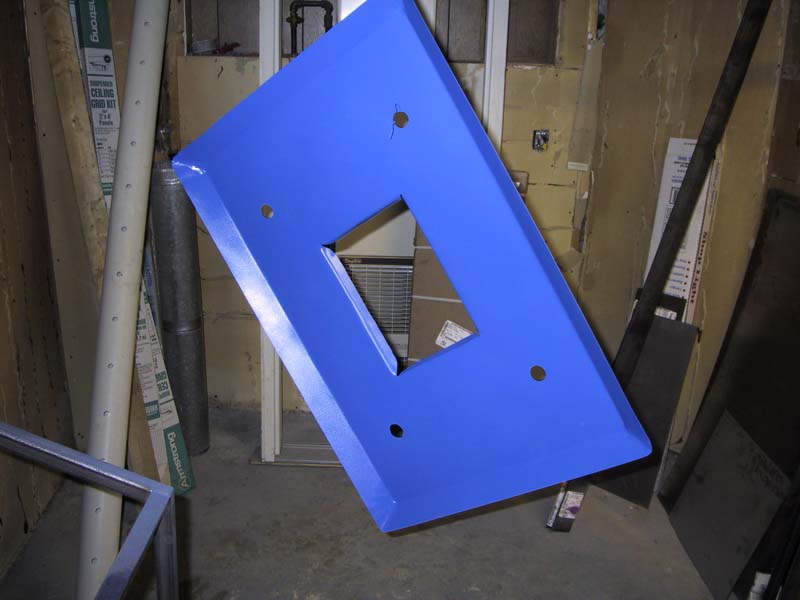

Here's a drip tray I made up out of sheet metal.

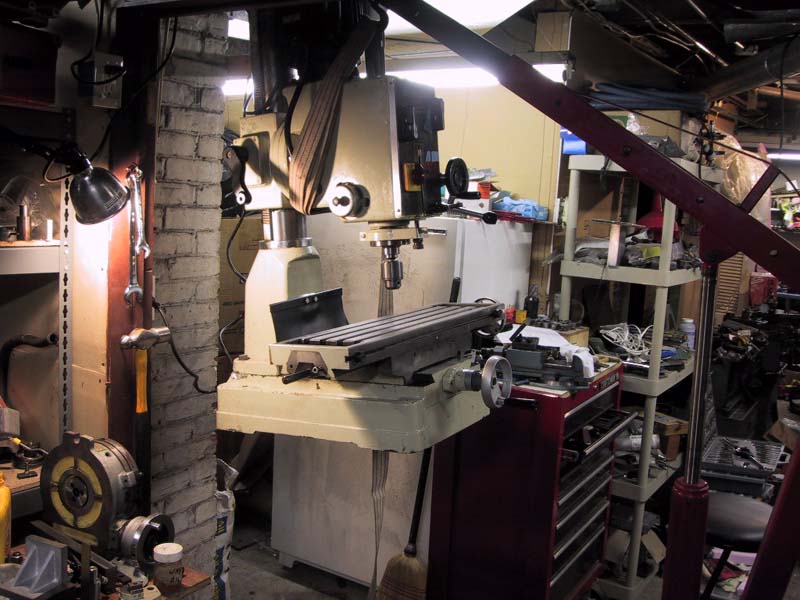

Mill in spaaaacccceeee!!

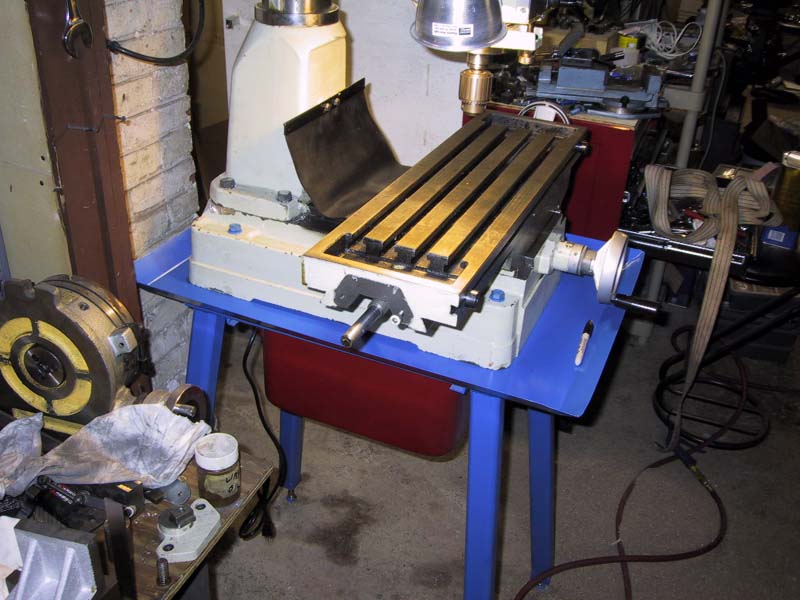

Ahh. That's better. The red 'udder' is a 3.5 gallon parts washer that I'm going to use for coolant.

I think it came out very nice.

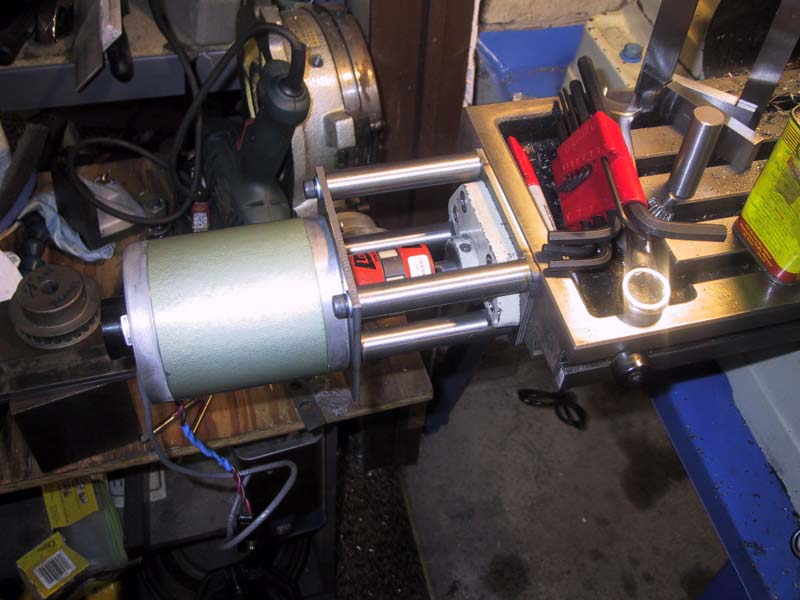

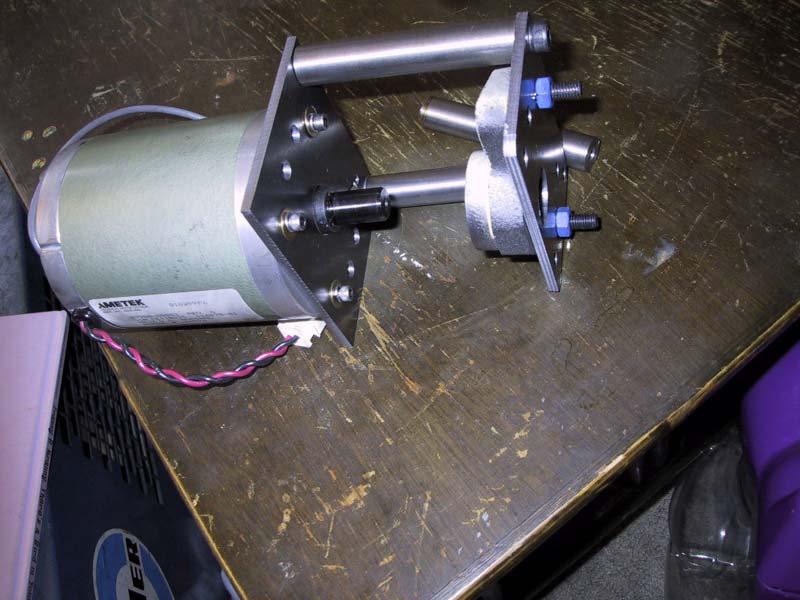

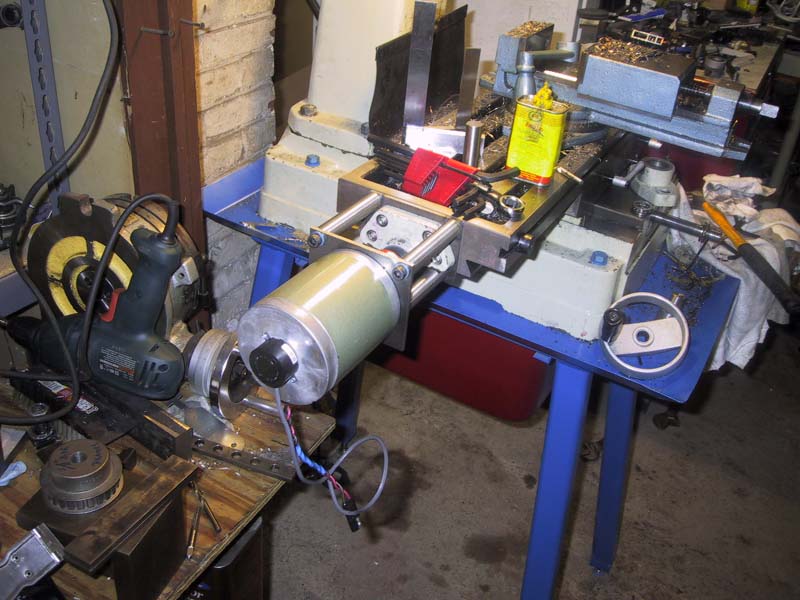

I've also started work on converting the mill to CNC.. I haven't gotten too far yet, although I have mounted the servo motor to the X-axis. I hope to have the Y-axis mounted pretty soon.

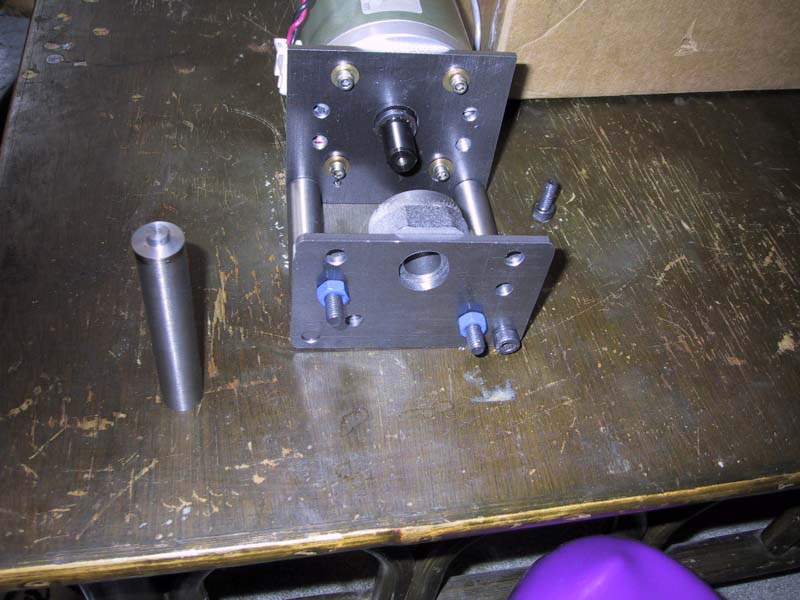

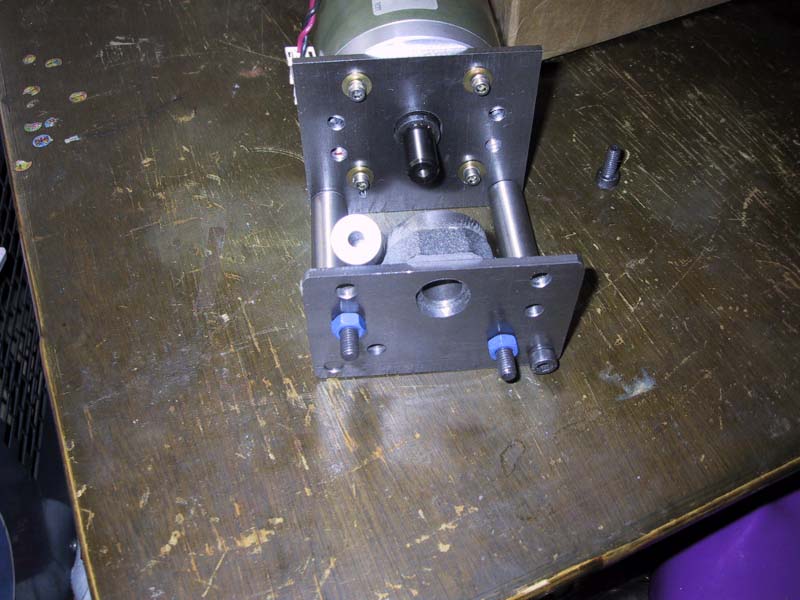

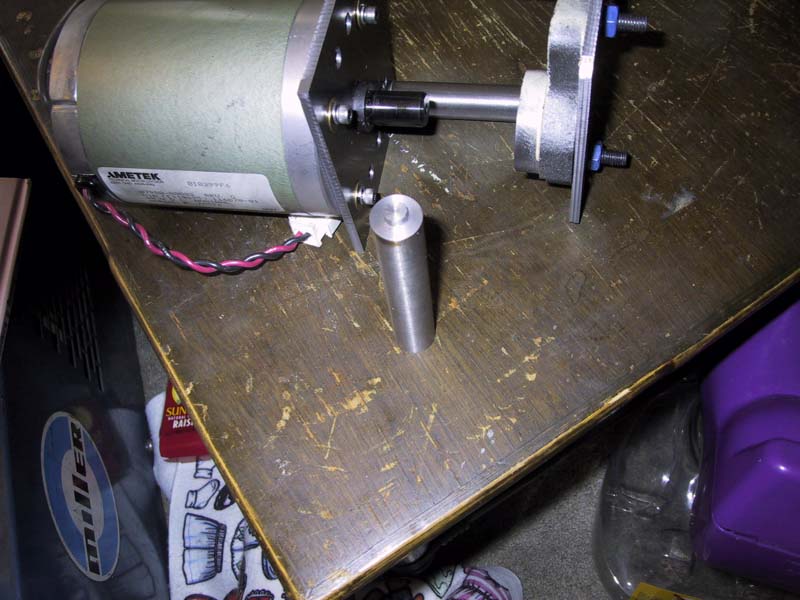

I made a pretty simple frame out of 4 3/4" posts, drilled and tapped on one end and are turned down on the other end to fit in a locating hole.

The turned down end is a slight interference fit in the hole in the plate.

All of the pieces were made on the mill.. Getting the posts to the correct height (they're all the same within a few tenths) was a little interesting. I was really pissed when I broke a tap in one and had to make another!

Once I had everything together and I checked that everything was square, I welded the non-tapped ends to the plates. It would have been nicer to use bolts but then I would have had to drill clearance holes in the mill and the motor to clear the bolts heads which wouldn't have been nice!

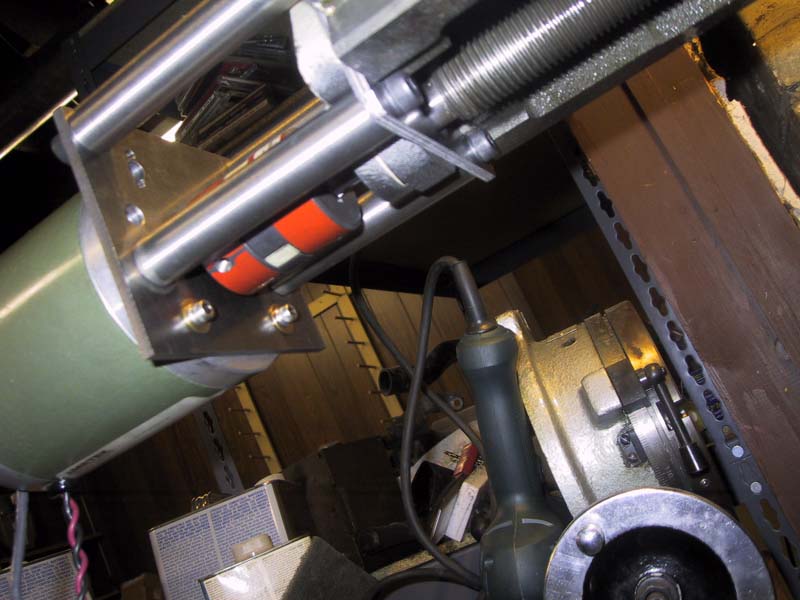

I used a cheap Lovejoy coupler because I couldn't find anything better that could be used with the 17mm lead screw shaft. I shimmed the spider so there is zero backlash.

In retrospect, I probably should have welded both ends as I didn't need to be able to dissasemble the frame in order to attach/remove it from the mill/motor.

Next is the Y-Axis and setting up my Geckos....
