Coilover Upgrade - Parts & Diagrams

You will need the following parts for the front:

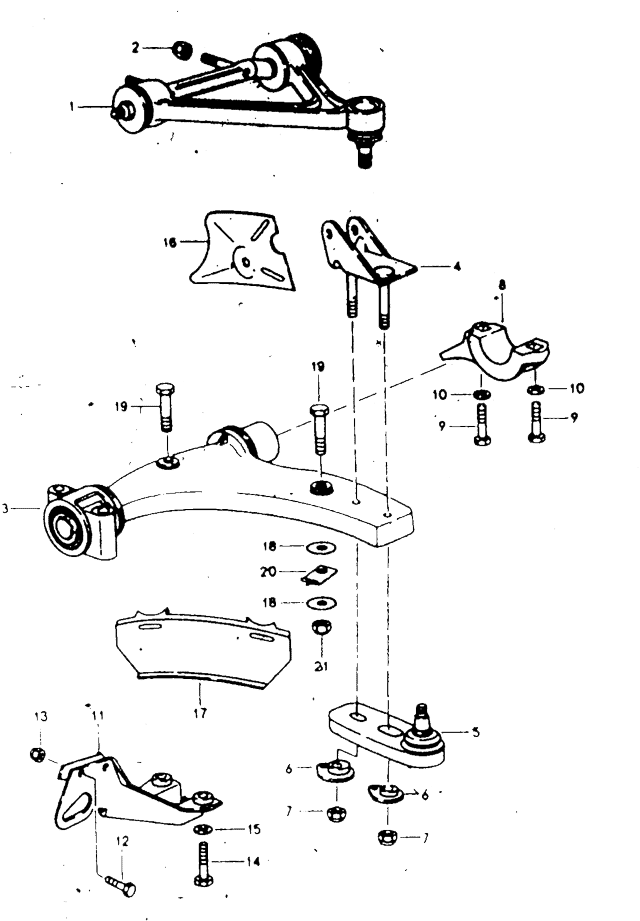

4) (2 each side) 900.910.115.02 for the camber/caster eccentrics (7 on diagram #1)

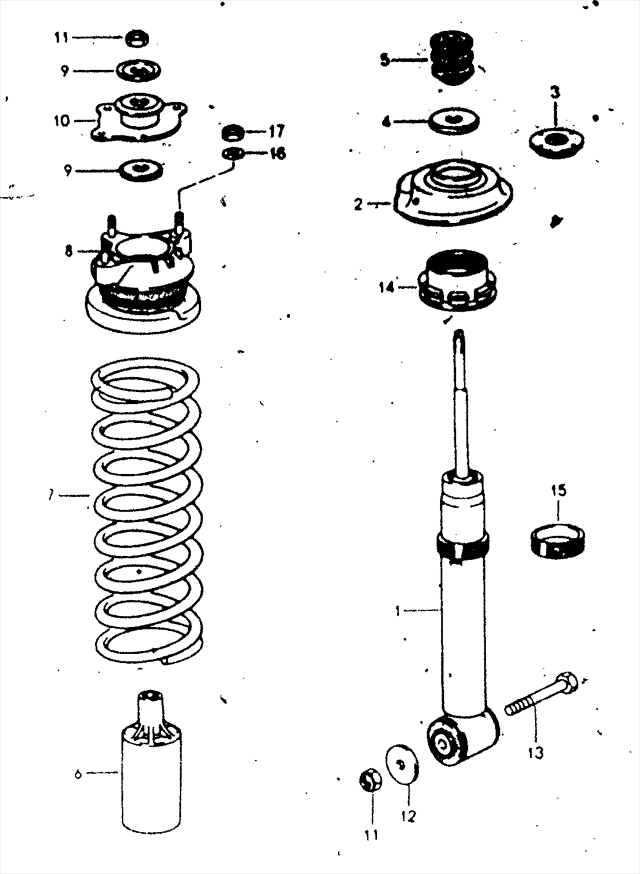

2) (1 each side) 900.082.044.02 Hex Bolt M12x1.5x175 (13 on diagram #3)
2) (1 each side) N.022.141.1 Locking Nut M12x1.5 (11 on diagram #3)
2) (1 each side) 999.025.074.02 Washer (12 on diagram #3)
Rear will need:

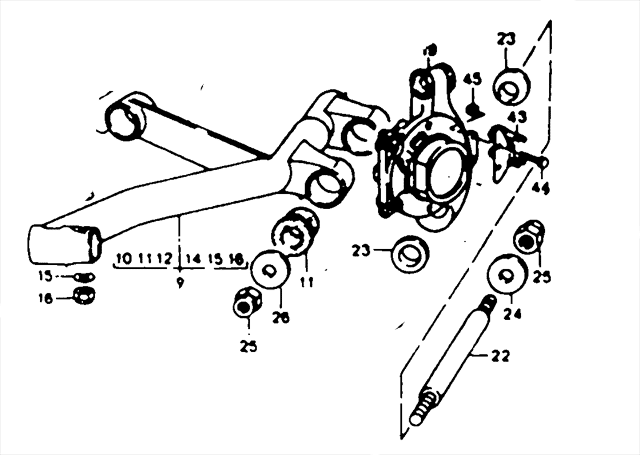

4) (2 each side, you may only need to replace 1) 900.910.055.07 Locking Nut (25 on diagram #2)
4) (2 each side) 928.331.47.07 Washer (24 on diagram #2)
Front and rear will need:

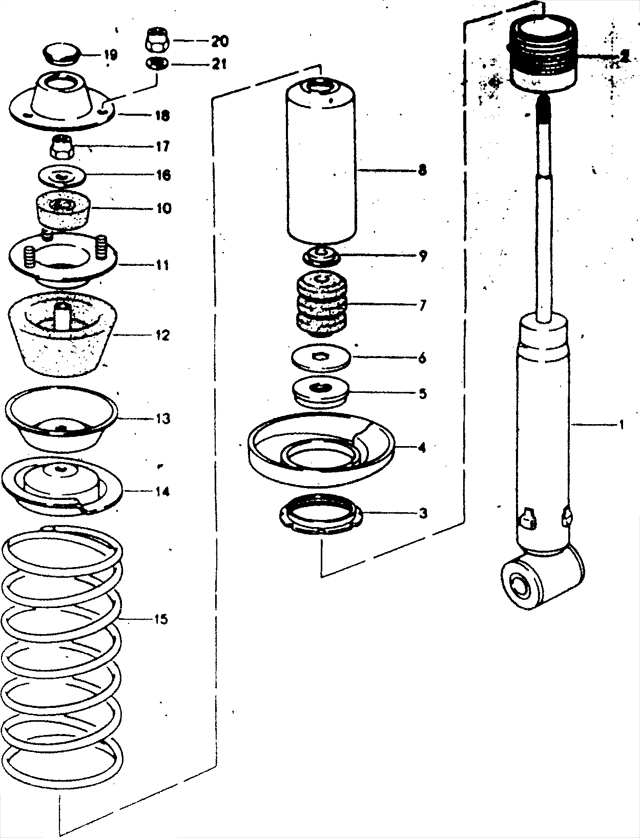

4) (1 each coilover) N.022.141.1 Locking Nut M12x1.5 (11 on diagram #3, 17 on diagram #4)
12) (3 each coilover) 900.910.031.07 Locking Nut M10 (17 on diagram #3, 20 on diagram #4)
12) (3 each coilover) N.011.527.4 (16 on diagram #3, 21 on diagram #4)
